1Input 1Output Current Voltage Transmitter Signal Isolation Converter Module,GLG-W1-P2 Series Power DC24V(Input 0-5V,Output 0-20mA)

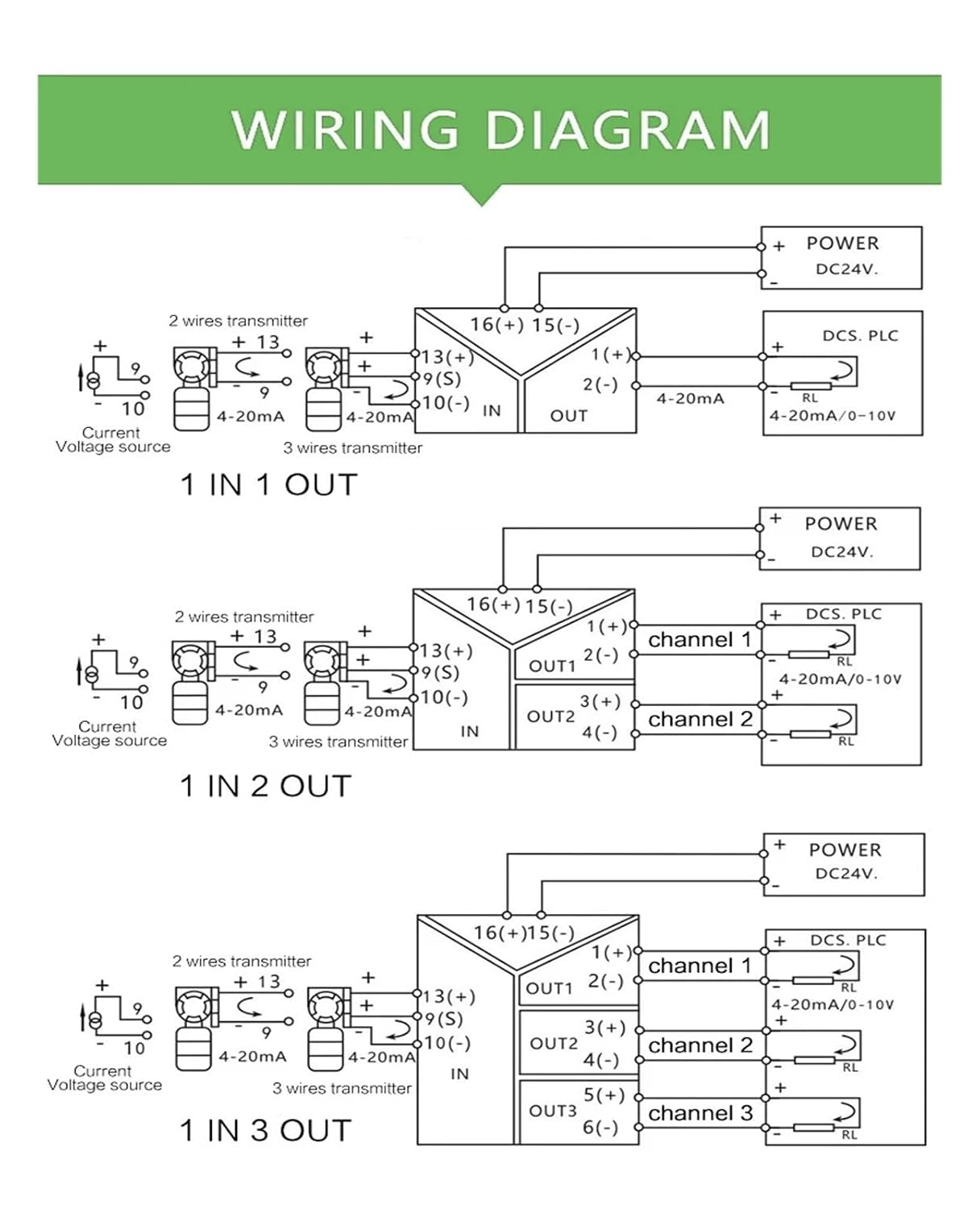

GLG signal converter Signal isolation signal distributorThis apparatus provides isolated power supply to the field two-wire, three-wire transmitter, and detects the current signal in a circuit meanwhile. It transmits the input current or voltage signal to isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanically isolated from each other.Dimensions : 100*114.5*22.5mmOperating Temperature : -20~60CSupply Voltage : DC24V,AC220VAccuracy Class : 0.1%FSModel Number : GLGDisplay Type : Analog OnlyProduct name : GLG signal isolatorChannel : 1 in 1 out/1 in 2 out/1 in 3 out/1 in 4 out/2 in 2 out/2 in 4 outInput : 0-20mA,4-20mA, 0-5V,0-10V etcOutput : 0-20mA,4-20mA, 0-5V,0-10V etcPower supply : AC220V,DC24VAccuracy : 0.1%

• Outstanding Performance: This signal isolator delivers exceptional cold resistance, insulation, moisture resistance, leakage resistance, vibration resistance, and aging resistance
• Convenient Installation: Features a 35mm standard rail mounting for easy installation
• Product Advantages: This signal isolator features high-precision internal control and a rapid 10ms response time
• Signal Isolation: This single-channel, dual-output isolated transmitter enables efficient signal separation, enhances system stability, and effectively prevents ground loop interference in PLC and industrial control systems
• Applications: Suitable for motor monitoring, industrial automation, and equipment protection systems. It interfaces sensors, transmitters, and other field instruments with PLCs and data loggers
